VOLVO TRUCKS (VECV) - Technical Failure Analysis Report

Purpose of TFAR	Guidance	Approval / feedback	Technical Feedback	Type of TFAR	Truck Chassis

Subject/Complaint
As per driver compliant engine overheat.
Report Number	700111-OR-2025-72223	Report Date	29-Sep-2025	Prepared By	volvowarranty
Dealer ID/Name
Customer Name		Customer Contact Person
Workshop/Site-Location		Customer Contact Number
Chassis Model with Axle Configuration		Body CuM & Application
Chassis No		Reg. Number		Date of Delivery
Date of failure		Repair Order No.		Repair Date
Failure Mileage kms		Age in Months		Engine Hrs.
Function Group		Causal Part No.		Description
Defect Code Group		Defect Code
Spare parts warranty		Spare parts invoice details		Spare parts fitment date*
Spare Parts age in months		Driveline Warranty		GDR No

Repair Estimate Summary

Material Cost		Labor Cost		Other Cost

Road Details

Type of road surface (Asphalt, Soil Gravel, Sharp stones etc.
Dust Condition (Heavy Slight, etc.,)
Approx. Gradient of the Road (required for engine and wheel Hub failures
Undulation on the Road( Heavy,Slight, Lot of pot holes, large Bumps, etc.)
Was the vehicle travelling Uphill or Downhill (required for engine and wheel hud failures

Load Details

Type of load carried		Permitted Technical GCW		GCW during failure

Available information on the load types and GCW's handled by the vehicle earlier which could have caused the failure

Aggregate details

Details of the concerned failed Aggregate ( Engine, Gearbox, Rear Axle, Diffeerential, Rear Axle, Diff. carrier, steering gear, Turbocharger, Superstructure Hydraulic parts etc…)
Aggregate		Aggregate Part No.		Aggregate Sr. No.

Interview with the Driver ( Applicable for all driveline related failures)

Driver Name		Training details on the related variant

Drivers description on the happening of the failure:

Technical Explination of (Dealer comment):

We first checked the coolant and engine oil levels. The coolant level was normal, and the engine oil was at the maximum level. There were no signs of any leaks from either the coolant system or the engine.
Next, we checked the thermostat valve and found it working properly. We then connected the diagnostic tool (VTT) and found an active fault code: P0480, which relates to the ECM fan clutch.
On further inspection, we found that the fan clutch bearing had stucked. This caused several related issues:
The fan stopped suddenly due to the bearing failure.
This led to the plastic part of the clutch melting, which further damaged the surrounding electrical wiring and the V-belt.
As a result, the engine started to overheat.
The root cause of the problem seems to be a bearing in the fan clutch, which led to overheating and physical damage to nearby components.
Since the vehicle was under driveline warranty and was stranded mid-operation in an highway area, we replaced the damaged parts:
Fan clutch assembly and V-belt
After replacement, the vehicle was tested and made fully operational again.

Fault codes registered in vehicle (Including Active and Inactive Faults)

Is the causal part a recently modified one

If Yes, kindly provide more details about the modification:

Is this a repeat failure		Is yes, provide relavant details

Relavant Argus No. If any		Relavant DQR No. If any		Relavant MQR No. If any

Relavant QJ No. If any

Affected Vehicle details

Chassis No	Model	Body No	Date of Delivery	Date of Failure	Mileage Kms	Engine hrs	Parts Sl.no

Area(Photos Where required/Applicable)

Photo Area(JPG file only, Max. Size:500 KB)	Description/Remarks

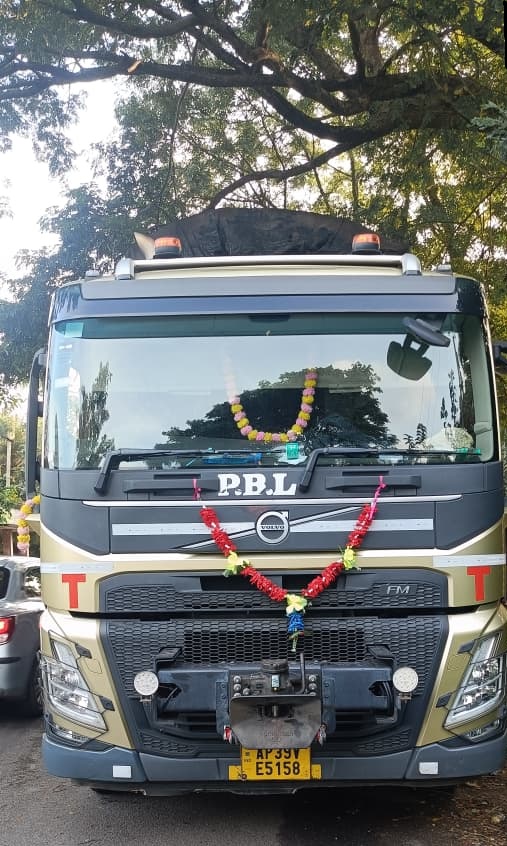

Remove File	Registration no:AP39VE5158

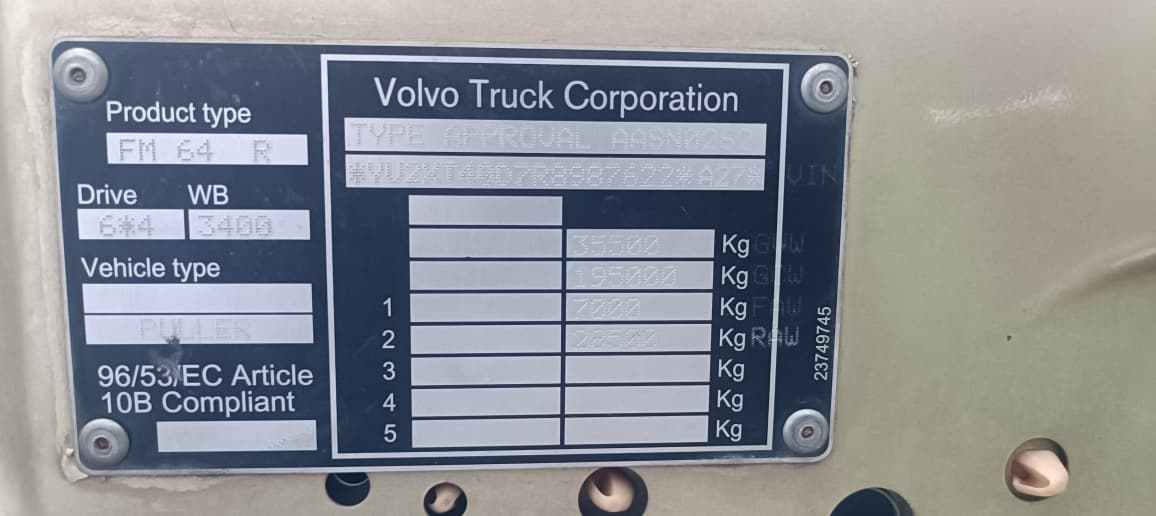

Remove File	Chassis no:8-987622

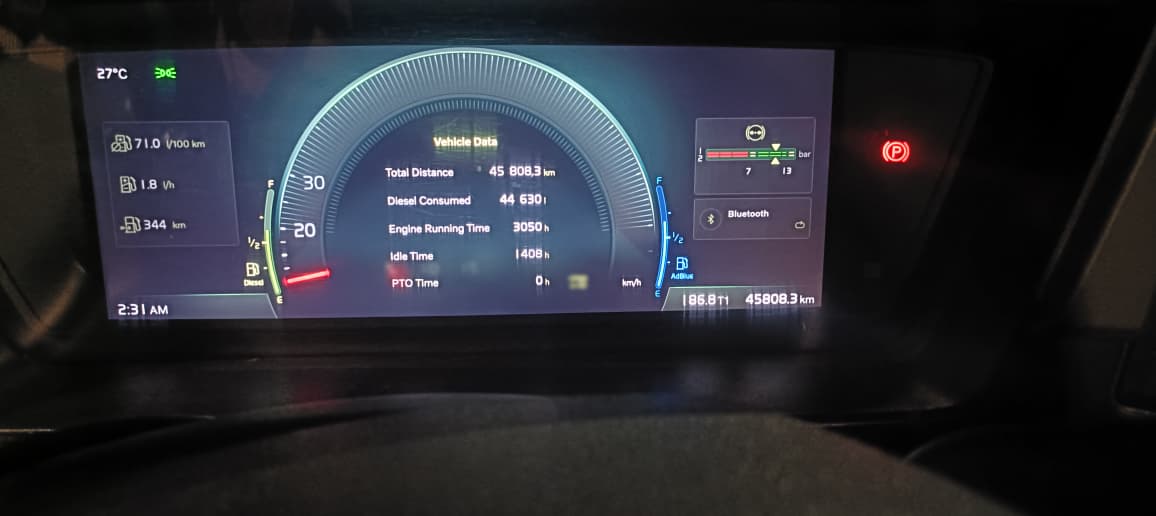

Remove File	Mileage:45808 KM
Remove File	UCHP screenshot of DOB.

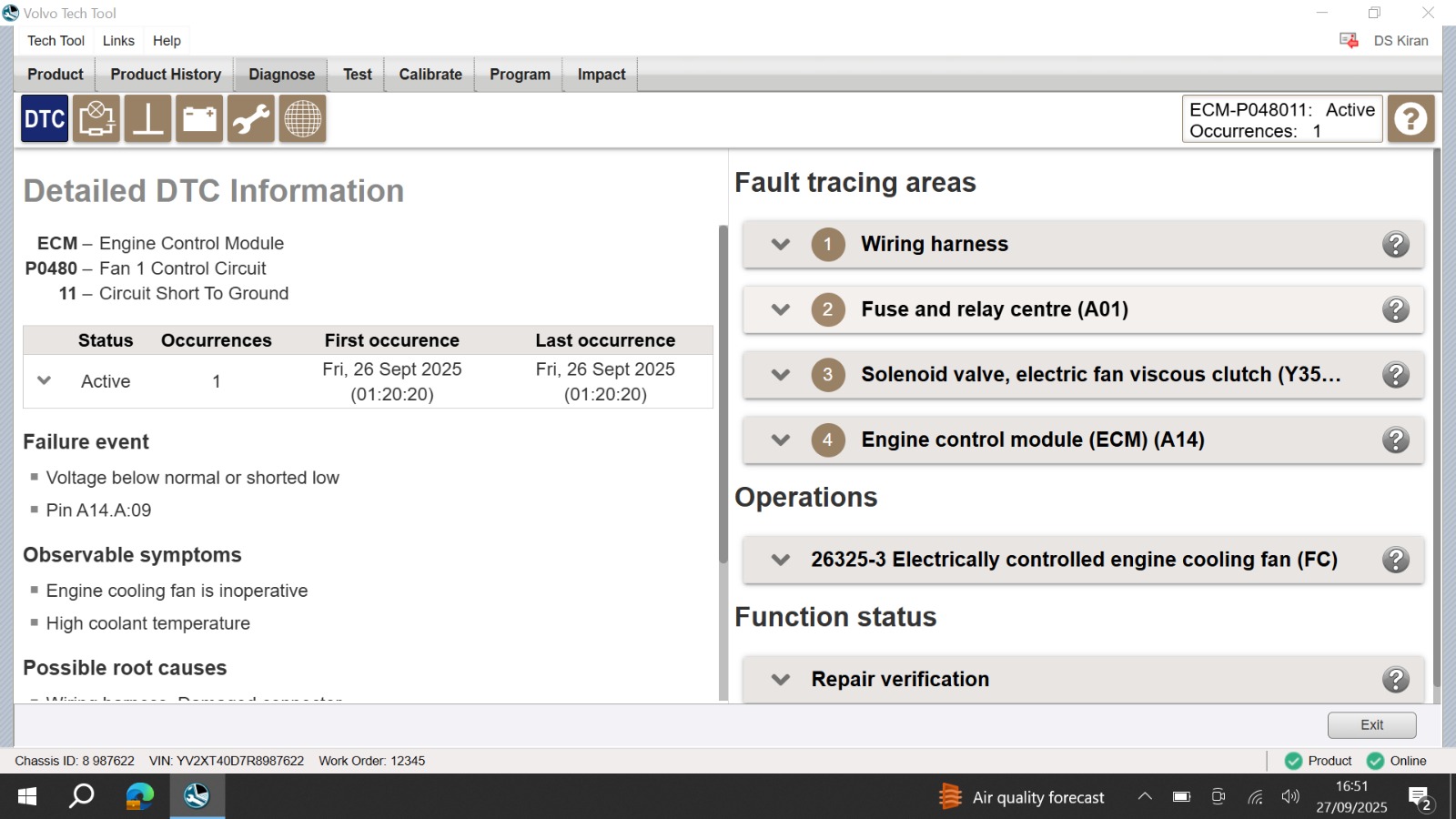

Remove File	Compliant active fault code

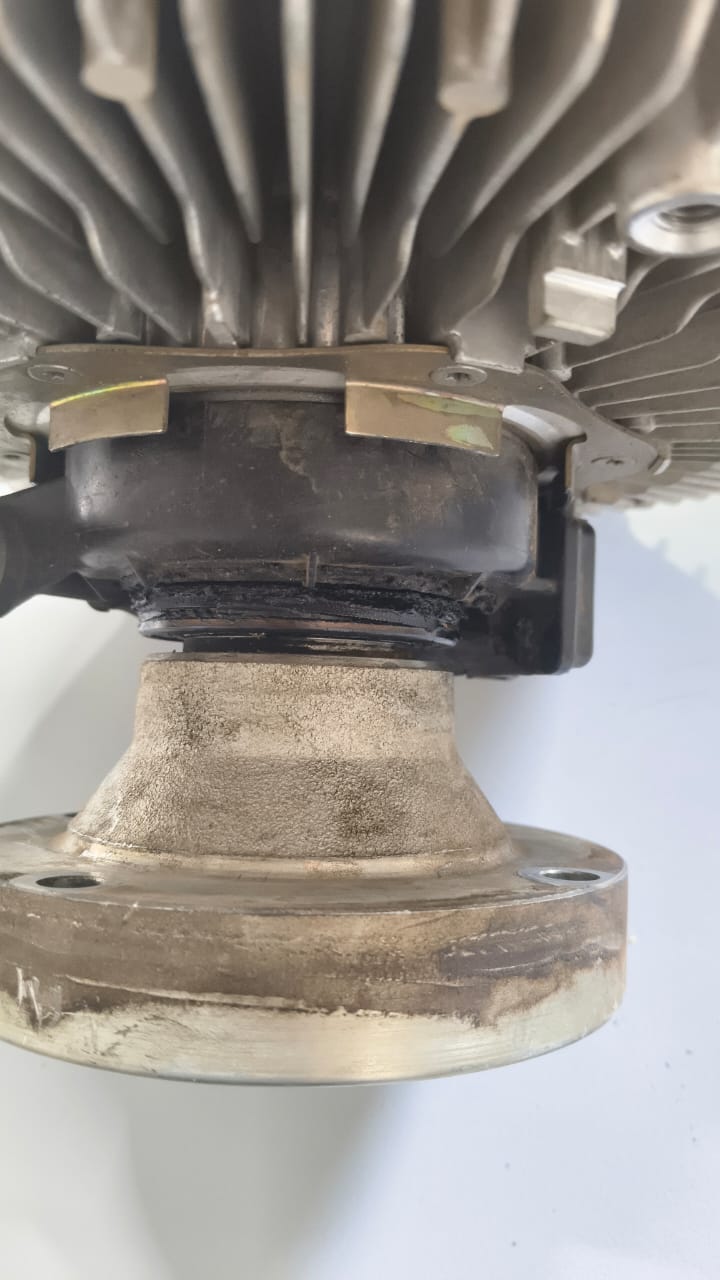

Remove File	Causal part

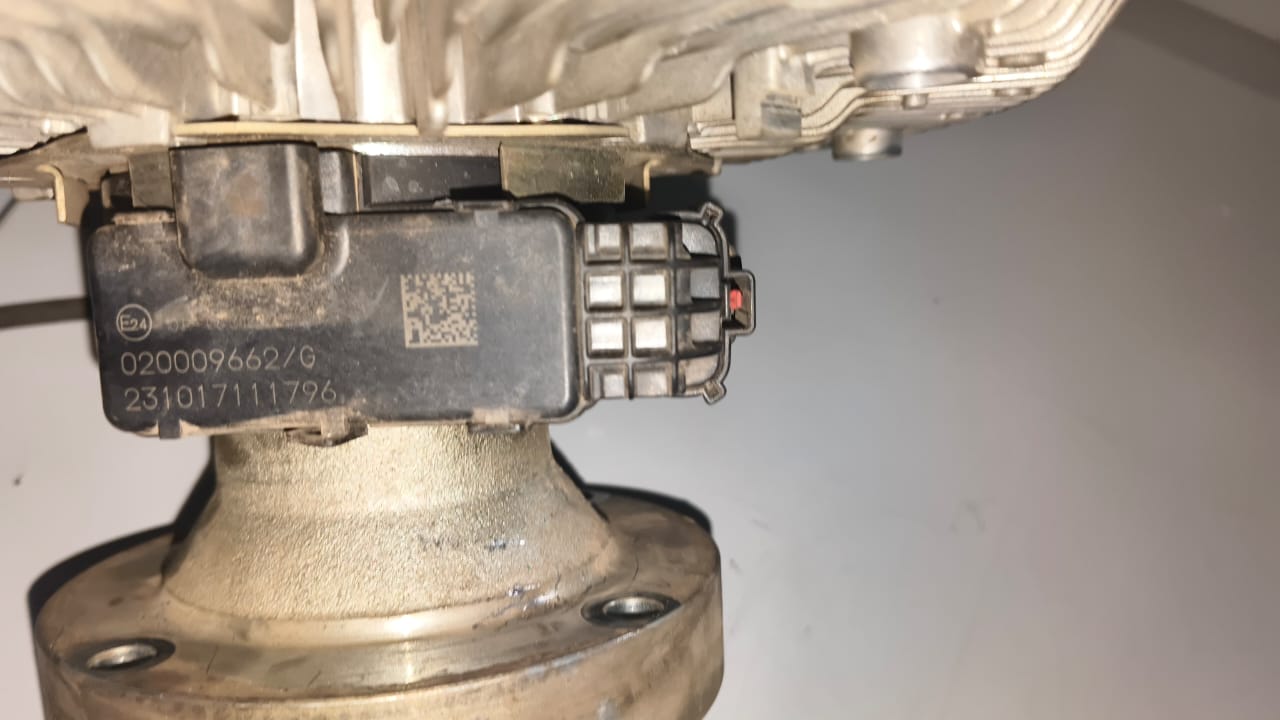

Remove File	Causal part serial number: 020009662/G-231017111796

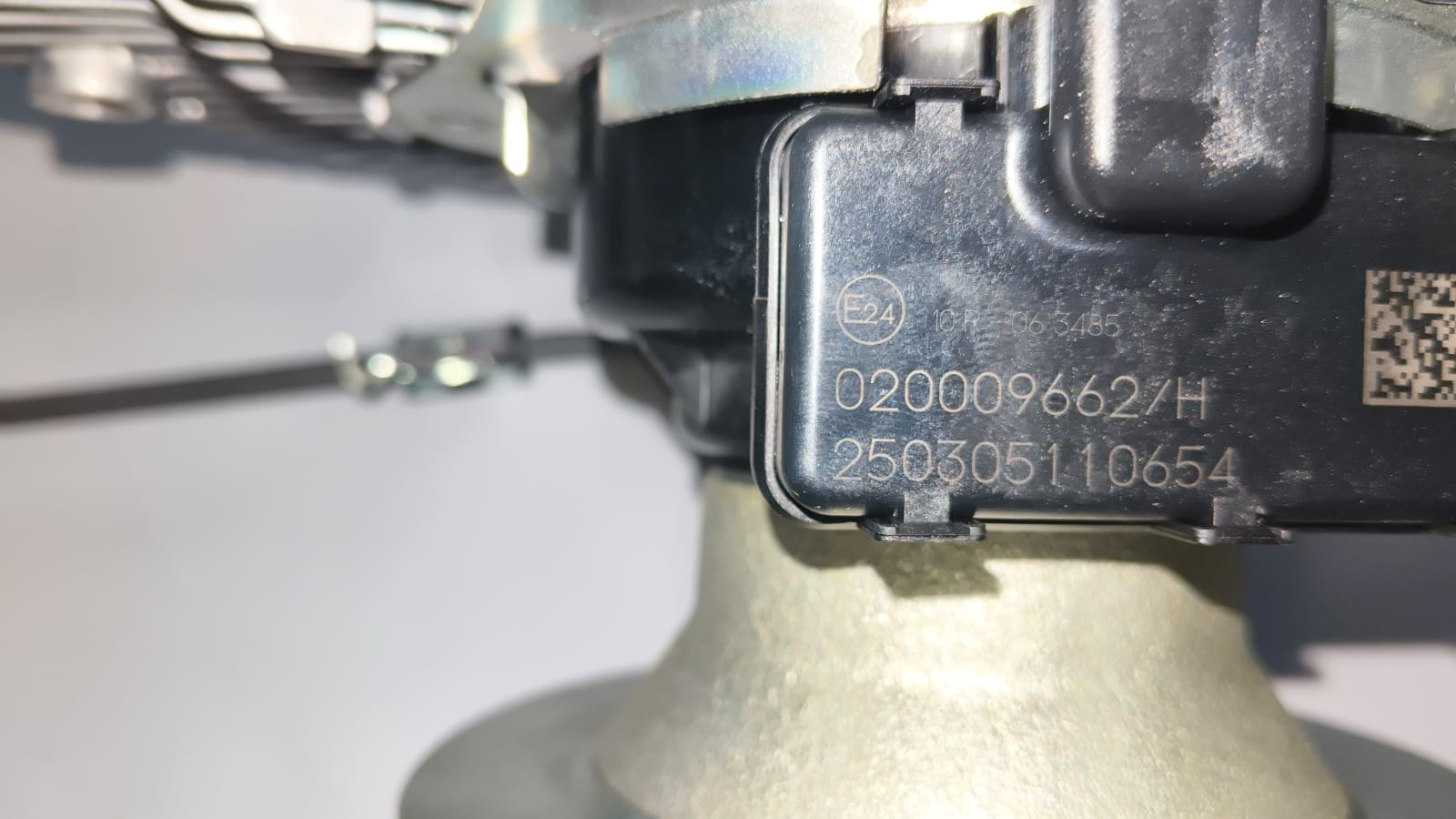

Remove File	New part serial number:020009662/H-250305110654

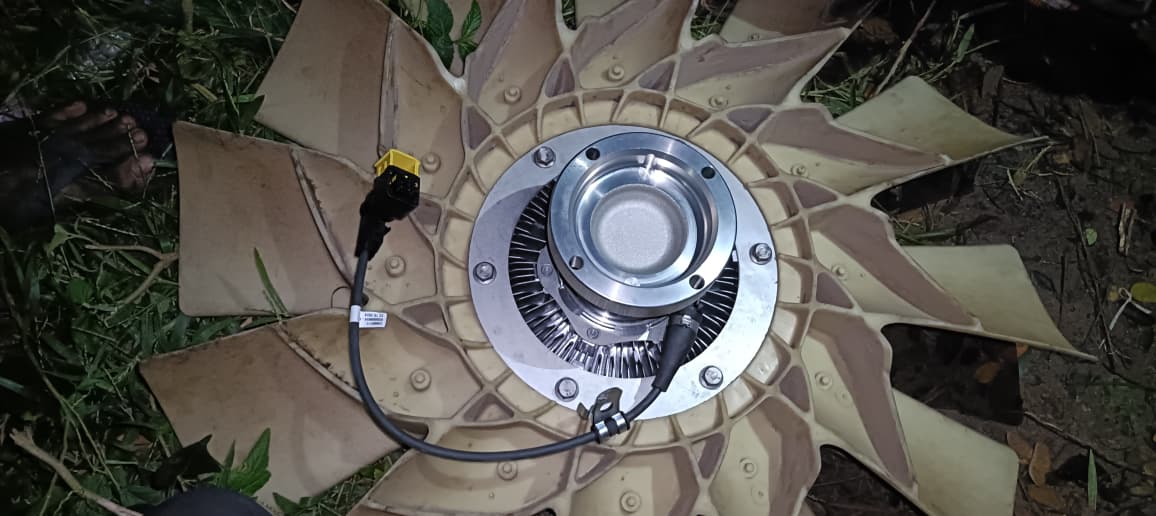

Remove File	new part fitted to vehicle.

Probable Cause of Failure

Corrective Action/Suggestions

Service and Repair History of the vehicle (Relevant to the failure)

S.No.	Job Card No.	Date	Mileage Kms	Engine Hrs.	Job carried out	Remarks

Repair Estimate

Material Cost

S.No.	Part no	Description	Qty	Unit Price	Net Price	GST %	GST. Amt	Net Price including GST	Pay code	Remarks



Total Net Price								51859.26

Labour cost

S.No.	Operation No	Description	Qty	Unit Price	Net Price	GST %	GST. Amt	Net Price including GST	Pay code	Remarks




Total Net Price								3732.93

Other cost

S.No.	Description	Qty	Unit Price	Net Price	GST %	GST. Amt	Net Price including GST	Pay code	Remarks



Total Net Price							20060.00

Total cost of Repair( Material, Labor and Other cost)

Any Local solution or suggestion from the Field team for Prevention/ Quick resolution of Complaint

ANNEXURES (Select the annexure attached)

17012-3 VCADS Pro Error Codes Test	1759141518_9741633b-02a6-4f44-b59b-e2d69c88fa49.jpg Remove File	Compulsory for all failures having fault codes
17034-3 Vehicle information test		Compulsory for all failures having fault codes
28486-3 Sensor Values History Report		Compulsory for all failures related with the engine
20007-3: Engine protection data
28407-3 Sensor Values, Monitoring
20005-3: Fuel consumption data
28108-8 Engine ECU, check		Compulsary for all failures related with the engine ECU
PDF file of the Repair history of the vehicle in LDS– complete		Optional
Scan or Fax copy of the Last BS or AS (as applicable) checksheet		Compulsary
Completely filled checksheets and Protocols as given in Impact/FAG in YVD for the complaint		Compulsary

Additional Attachments

S.No.	Attatchemnt
1	Attachement File Remove File (PDF/Word/Excel file only, Max. Size:1024 KB)
2	Attachement File Remove File (PDF/Word/Excel file only, Max. Size:1024 KB)
3	Attachement File Remove File (PDF/Word/Excel file only, Max. Size:1024 KB)
4	(PDF/Word/Excel file only, Max. Size:1024 KB)
5	(PDF/Word/Excel file only, Max. Size:1024 KB)
6	(PDF/Word/Excel file only, Max. Size:1024 KB)

Oil & Fuel Sample Test Reports (Compulsory for all major engine related failures):

Sample Date		Sent to ELF Mumbai

Dispatch Details of Failed Parts( Mandatory for critical failures/failures related to safety/failures related to performance)

Docket No		Dispatch Date		Courier Name		Transporter Veh No.

Present Status of the vehicle

Present Status		Reason

Comments

S.No.	Remarks	By	Date & Time	TFAR Status
1	Dear team, Kindly approve the TFAR vehicle under driveline warranty.	volvowarranty	2025-09-29 16:52:46	TFAR RAISED
2	Hello TS team, Could you pls check and confirm, to approve the case under DL warranty	knvinod	2025-09-29 18:41:45	TFAR FORWARDED
3	Hello team, As per warranty binder, engine Fan (FG 2631)is not covered under driveline warranty.	sskumar3	2025-09-30 08:36:55	RETURNED
4	Hello team, Pls refer the TS teams confirmation on DL coverage	knvinod	2025-09-30 10:53:24	REJECTED
